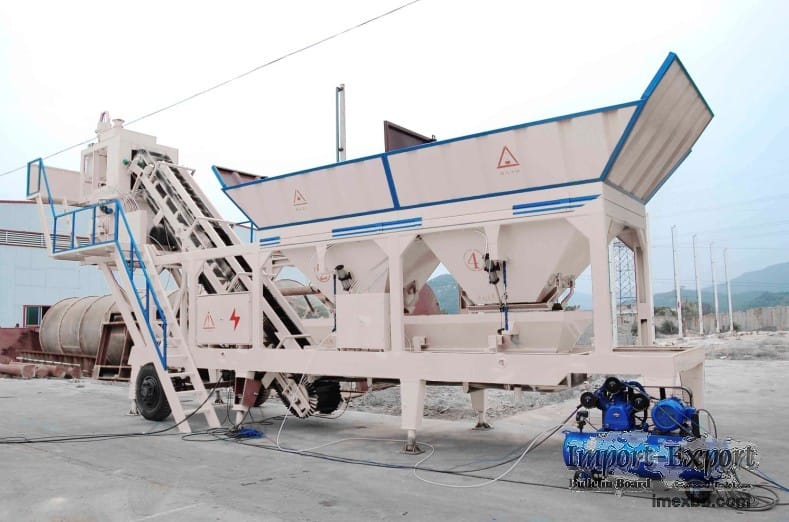

Haomei YHZS Series Mobile Concrete Batching Plant
Move Your Production Line Directly to the Project SiteElevate your construction efficiency with the Haomei YHZS Series. Engineered for high-mobility projects, this fully integrated, towable concrete batching plant eliminates the boundaries of traditional concrete production. By packing aggregate batching, weighing, mixing, and smart controls onto a single mobile chassis, the YHZS series delivers commercial-grade concrete right where you need it.
Why Choose the YHZS Series? | Key Advantages
🚛 1. Plug-and-Play Integration (Rapid 3-Day Setup)
Stop wasting weeks on plant installation. The YHZS series features a highly integrated, modular design where all core components are pre-assembled on a heavy-duty chassis. Upon arrival, simply unfold the structure, connect the utilities, and start mixing. Go from transport mode to full production in just 48 to 72 hours.
🏗️ 2. Zero-Foundation Engineering (Massive Cost Savings)
Traditional stationary plants require expensive, permanent concrete foundations that take days to cure. The YHZS series completely eliminates this requirement. Engineered with a rigid, load-bearing structural frame, the plant can be safely deployed on any flat, compacted ground—slashing your civil engineering costs and site preparation time to zero.
🛣️ 3. Unmatched Mobility for Fast-Paced Linear Projects
Designed explicitly for highways, railways, bridges, and airport runways, the YHZS series is the ultimate "nomadic" asset. Equipped with a standard towing kingpin and heavy-duty road axles, it can be hooked up to a standard truck tractor and towed effortlessly to the next job zone. Only external accessories (silos and conveyors) need to be detached during relocation.
🎯 4. Precision Dosing & High-Performance Mixing
Mobility does not mean sacrificing quality.
- Twin-Shaft Compulsory Mixer: Delivers aggressive, uniform mixing cycles for stiff, plastic, or high-performance concrete mixes.
- High-Precision Load Cells: Dedicated independent electronic weighing systems for aggregates, cement, water, and additives ensure every batch meets strict international engineering standards.
💻 5. Industrial Automation & Smart Control
Take full control of your output with our state-of-the-art PLC automation system. Housed in a fully enclosed, climate-controlled cabin, the intuitive interface supports fully automatic, semi-automatic, and manual modes. Store hundreds of mix recipes, track real-time batching data, and print production logs instantly for flawless quality assurance.
Product Specifications
| Model | Production Capacity | Mixer Model | Max Aggregate Size | Discharge Height |
|---|---|---|---|---|
| YHZS25 | 25 m³/h | JS500 | ≤ 60 mm | 3.8 m |
| YHZS35 | 35 m³/h | JS750 | ≤ 60 mm | 3.8 m |
| YHZS50 | 50 m³/h | JS1000 | ≤ 80 mm | 3.8 m / 4.2 m |
| YHZS60 | 60 m³/h | JS1000 | ≤ 80 mm | 3.8 m / 4.2 m |
Best For: Target Applications & Project ScopesThe Haomei YHZS Series is the industry-prime solution for projects where speed, flexibility, and site mobility are critical to profitability. It is the ideal investment for:
- Linear Infrastructure Projects
Perfect for highways, expressways, high-speed railways, and mountain roads. As the construction front moves forward, the plant can be easily towed to the next section, drastically reducing concrete transit times and truck fleet costs. - Remote & Off-Grid Construction Sites
The ultimate choice for bridge building, dam construction, wind farm foundations, and rural grid upgrades. Its zero-foundation design allows operators to establish a reliable concrete supply chain in rugged terrain with minimal site preparation. - Short-Term & Multi-Phase Contracts
Ideal for projects lasting 3 to 12 months where erecting a permanent stationary plant is financially unjustifiable. The ultra-fast 3-day teardown and setup ensure maximum machine utilization across multiple distinct contracts per year. - Urban Maintenance & Airport Runways
Highly effective for night-shift road repairs, municipal patching, and airport runway expansions. Its compact footprint allows it to operate within tight, enclosed job sites without disrupting surrounding traffic or operations. - On-Demand Commercial Supply
A powerful asset for concrete contractors who want to position a dedicated batching plant directly inside a major client's job site, guaranteeing zero concrete spoilage and real-time quality control.
About Haomei Machienry
Haomei Machinery Equipment Co., Ltd. isa leading heavy industrial equipment manufacturer specializing in concrete production and construction machinery. Founded in 1998 and headquartered in the industrial hub of Zhengzhou, China, the company spans over a 500,000-square-meter production base. It services major engineering projects globally across more than 80 countries
Core Product Offerings
The company is globally recognized for its heavy-duty, electromechanical units and tailored mixing plants:
- Concrete Batching Plants: Stationary and containerized units ranging from the compact HZS25 (25 m³/h) to high-capacity industrial series like the HZS60, HZS120, and HZS240 (240 m³/h).
- Mobile Mixing Solutions: Fully integrated YHZS series mobile plants built on a transport chassis for rapid site setup and highly versatile, scenario-specific mobile self-loading concrete mixers.
- Pumping & Transport Machinery: Comprehensive fleet machinery including concrete trailer pumps (HBT series), truck-mounted boom pumps, and standard transit mixer trucks. [1, 2]
- Supplementary Equipment: Stationary asphalt mixing lines, brick/block making machinery, and specialized industrial refrigeration units like containerized water chillers and flake ice machines.
Engineering and Operational Standards
- Design & Quality Control: Haomei dedicates over 26% of its workforce to technical R&D, implementing strict process control in compliance with ISO9001 and SGS standards.
- System Integration: Equipment incorporates precise aggregate and cement dosing loops, automated microcomputer controls, high-end twin-shaft or planetary mixing configurations, and robust hydraulic gate components.
- Procurement Support: Operating as a direct manufacturer, the company supplies unified procurement pipelines for complete operations, including screw conveyors, dust collectors, silos, and replacement parts
